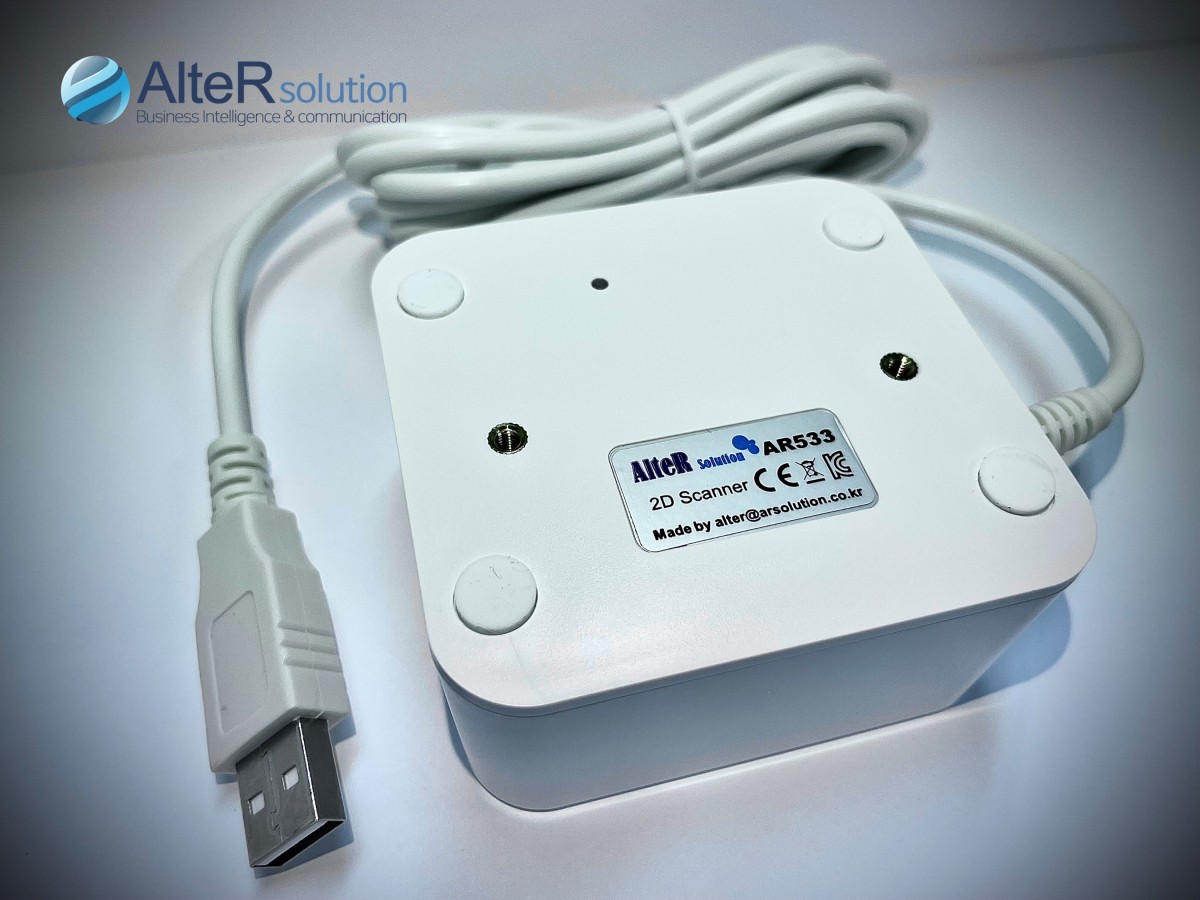

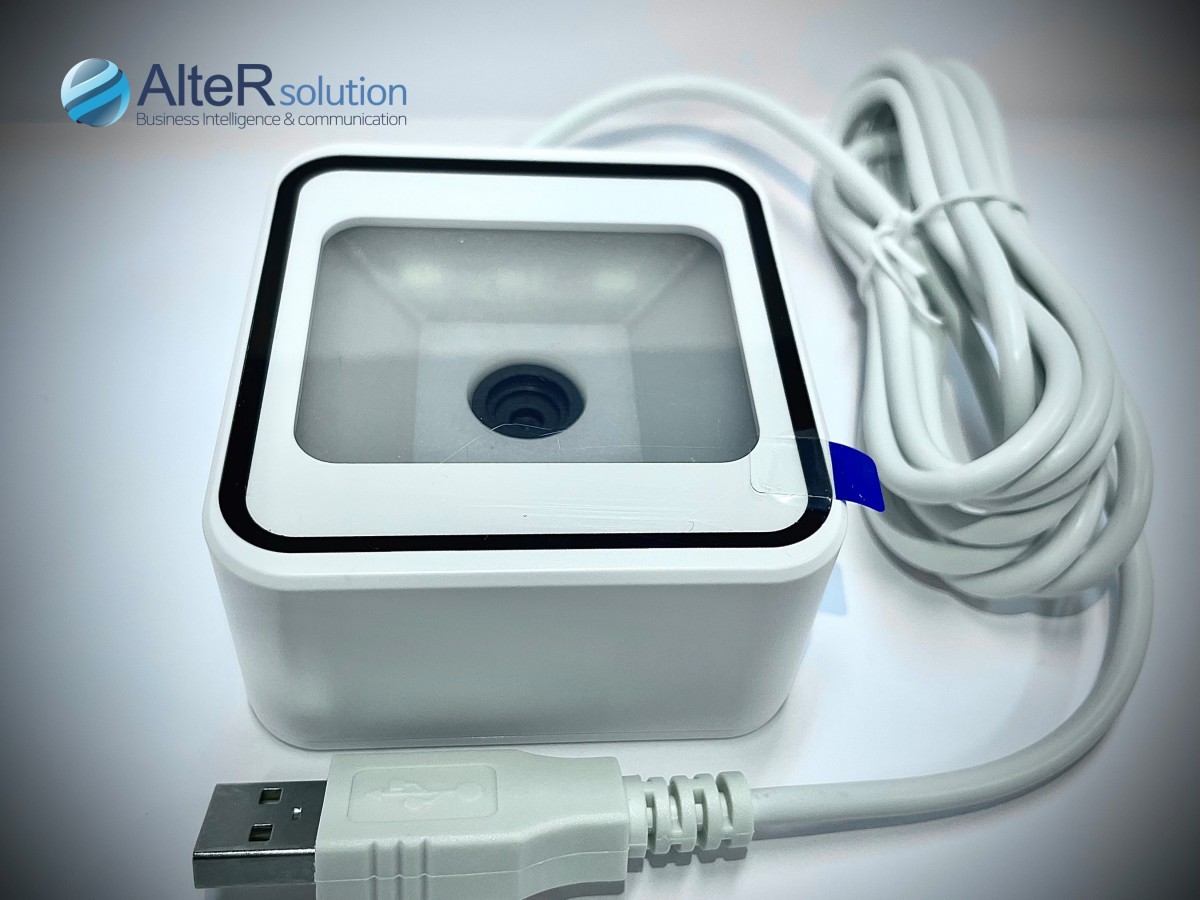

AR533 접촉식 바코드 스캐너
High Scanning Performance on Printed and Displayed 1 D a nd 2D (QR Barcodes)
· Dimensions 72.2L x 68.2W x 35.9H mm
· Weight 146g
· Interface USB HID, USB Virtual COM, RS-232
· Optical System 640 x 480 pixels (Area Image)
· Field of View Horizontal:78°, Vertical: 62°

AR533 Specification High Scanning Performance on Printed and Displayed 1D and 2D(QR Code) Barcodes

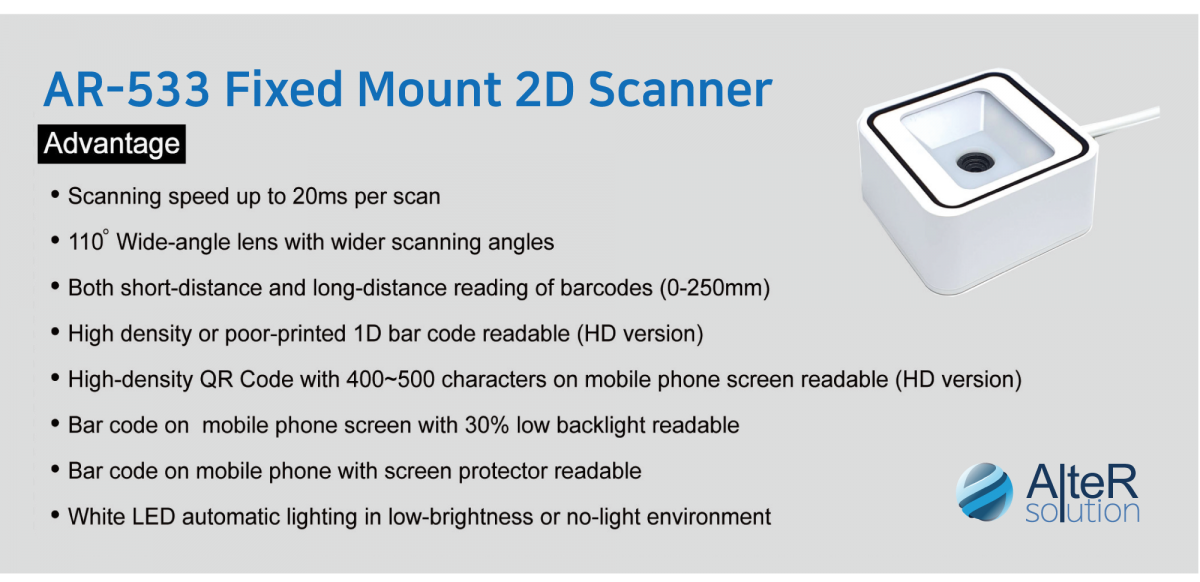

Features


⚫ Omni-directional scanning of 1D/2D(QR Code) bar codes

⚫ Scanning speed up to 2msec

⚫ 110° Wide-Angle lens

⚫ Automatically fill light function


Physical


Dimensions 72.2L x 68.2W x 35.9H mm

Weight 146g

Interface USB HID, USB Virtual COM, RS-232


Performance


Optical System 640 x 480 pixels (Area Image)

Light Source White LED

Scan Angle Roll 0° - 360°, Pitch ± 80° , Skew ± 70°

Field of View  Horizontal:78°, Vertical: 62°

Indicator  LED, Beeper

Print Contrast Minimum 20%

Scanning Distance  0~250mm

Decode Capability  2D : QR Code, Data Matrix, PDF417, Maxicode, Mirco PDF417, Aztec

                         1D : GS1 DataBar (RSS), Code 39, Code 93, Code 128, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Codabar (NW7), UPC-A,

                                  UPC-E, UPC/EAN/JAN, EAN-8, EAN-13, EAN-128 and more


User Environment


Ambient Light          0~100,000Lux(Fluorescence)

Operating Temp.      -20~60℃ in free air ambient temperature

Storage Temp.         -30~70℃

Humidity                5% to 95%(non-condensing), not intended for exposed operation.

Drop                       Withstand 1.5M drops

Power                     Operational input voltage: VCC=5.0±5%

                                Operational Current: 230mA

                                Standby Current: 210mA



ar-533은 접촉식 스캐너로 현재 다수의 국내 키오스업체에서 사용되고 있습니다.


인터페이스도 다양하게 제공되고 있으며 kc인증완료한 제품입니다.





*AR은 AlterSolution에서 직접 생산 및 제조하는 라인업입니다.
