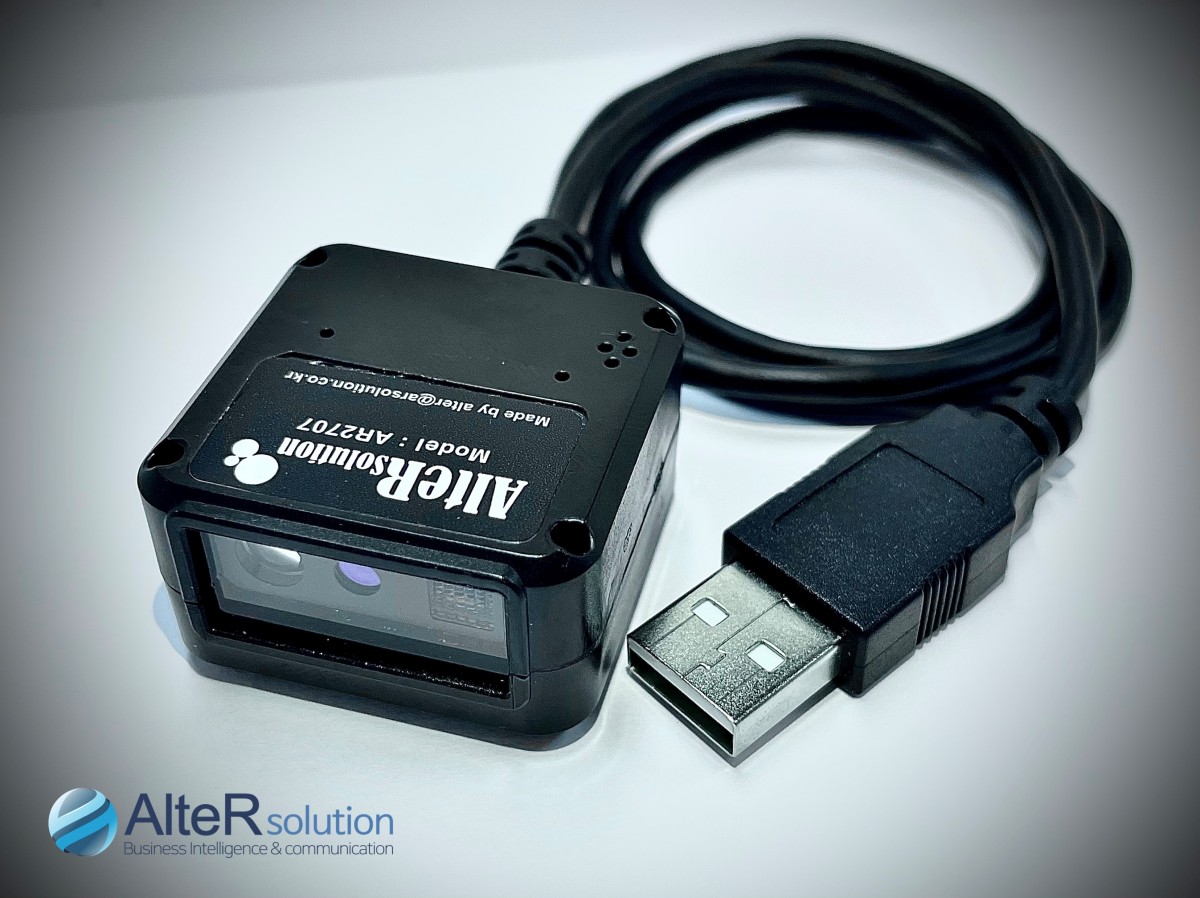

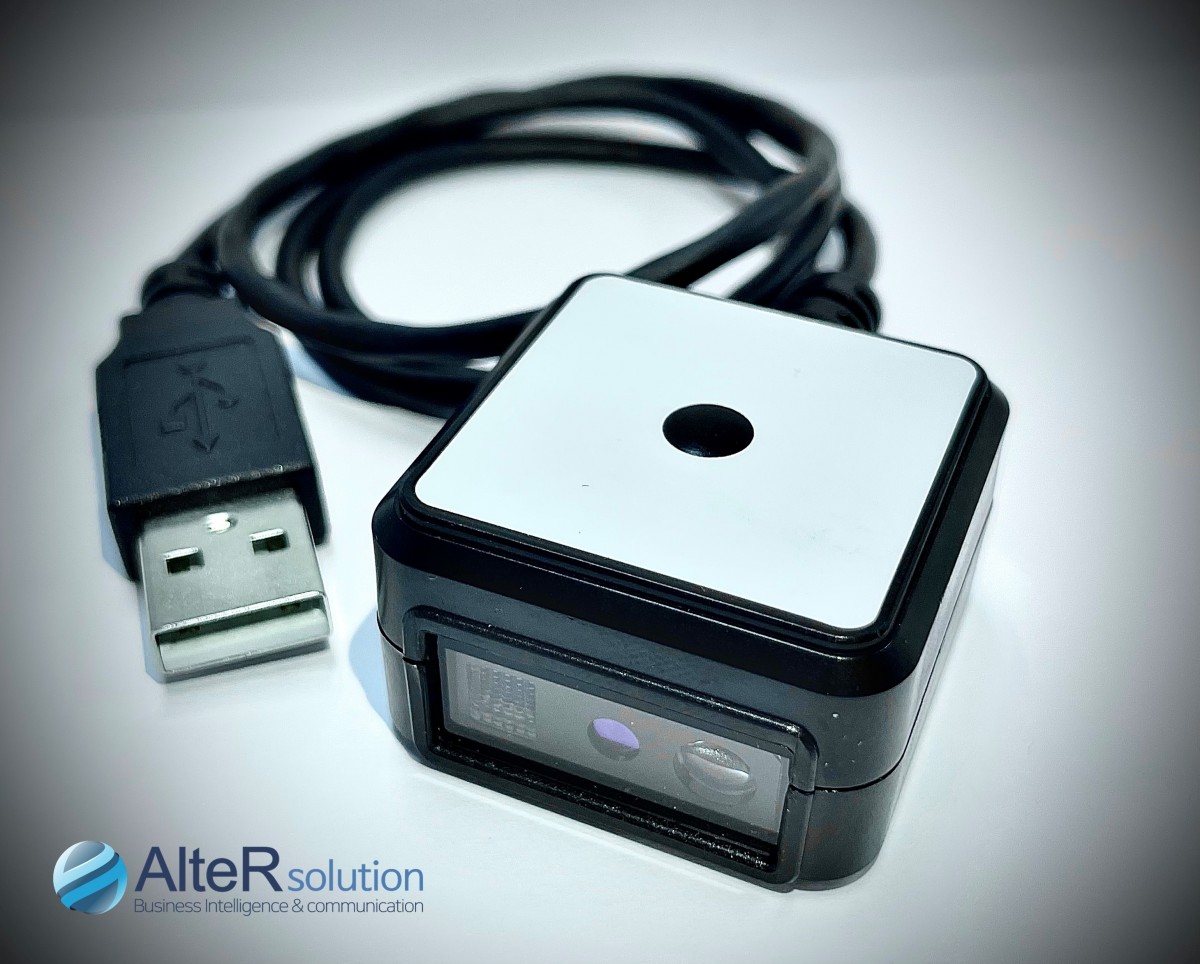

AR2707
High Scanning Performance on Printed and Displayed 1D and 2D Barcodes
· Dimensions 20Hx35Wx35D(mm)
· Weight under 34g (w/ Barcode engine)
· Interface RS232(w/ USB 5.0V , Power) USB

Physical


Dimensions: 20Hx35Wx35D(mm)

Weight: under34g (w/ Barcode Engine)

Interface RS 232(w/ USB 5.0V Power), USB


Performance


Sensor Resolution: 640 Horizon x 400 Vertical (Pixels)

Field of View: 42.0 º H orizon x 28.0º Vertical (Angle)

Distance: Focal 7.64 inch

Aiming: 610nm LED

Illumination: 1 Hyper Red 660nm LED


User Environment


Ambient Light Max 107,639 lux

Temperature Operating -20~50

                        Storage -40~70

Humidity Operating 95% RH, non condensing at 50

                    Storage 85% RH, non condensing at 70

Shock Rating       2000G±5%, any mounting surface at -20ºC and 60ºC for 0.85±0.10ms

                               2500G±5% any mounting surface at -23ºC for 0.70±0.10 ms


Power       Operational input voltage: VCC=5.0±0.3V

                  Total Current Draw: 340mA pk,270mA RMS

                  Current Draw in low power: 3mA Typical



Related product : AR1350 1D Laser Barcode Scanner with exactly same size and interface of AR2707
